  • How to type special characters in Gnome and Ubuntu

    Despite using Gnome for ages, I've never bothered to work out how to type special characters, like ™ or ©. I've normally just opened the Character Map application and copied from there - obviously this is a bit of a round about process.

    I finally decided to look it up and it's as simple as: Ctrl-Shift and the character code from Gnome's Character Map application.

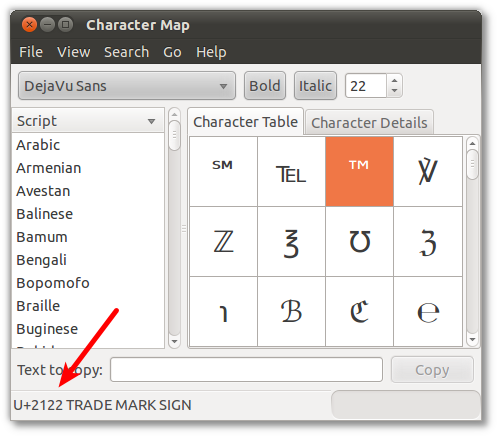

    So to type ™, go to Applications > Accessories > Character Map. Then note the character code:

    Hold down Ctrl + Shift and type u2122. Simple.

  • How to encrypt a disk partition in Linux

    LUKS is the standard for Linux hard disk encryption. The following few commands are all you need to encrypt your next external hard disk or USB key on a Debian-based distribution like Ubuntu.

    Installation

    Install the required software and load the module into the running kernel without restarting:

    sudo aptitude install cryptsetup
    sudo modprobe dm_crypt


    Drive creation

    Set up encryption on the disk and mount it:

    sudo cryptsetup luksFormat /dev/sdb1
    sudo cryptsetup luksOpen /dev/sdb1 external
    sudo mkfs.ext4 /dev/mapper/external
    sudo mount /dev/mapper/external /mnt


    Mounting

    How to mount the drive:

    sudo cryptsetup luksOpen /dev/sdb1 external
    sudo mount /dev/mapper/external /mnt


    Unmounting

    How to unmount the drive:

    sudo umount /mnt
    sudo cryptsetup luksClose external

  • TrackPoint scrolling in Ubuntu 10.10

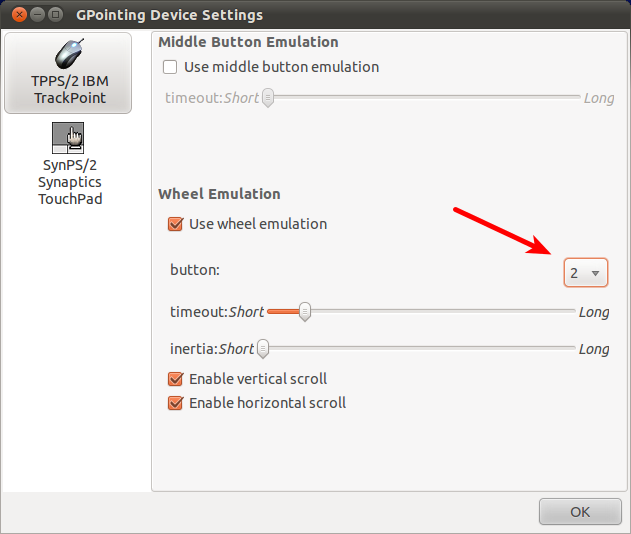

    I just upgraded to Ubuntu 10.10 on my ThinkPad and the only issue so far is that TrackPoint scrolling had stopped working. To re-enable it I used GPointingDeviceSettings and set the following settings:

    The important change was to set the wheel emulation’s button to 2, not 4 as it appeared to have been set to. If you don’t have GPointingDeviceSettings installed:

    sudo apt-get install gpointing-device-settings


    Update:

    This original method didn’t survive a power-cycle but I found adding this file to /usr/share/X11/xorg.conf.d/20-thinkpad.conf will work:

    Section "InputClass"
        Identifier "Trackpoint Wheel Emulation"
        MatchProduct "TrackPoint"
        MatchDevicePath "/dev/input/event*"
        Driver "evdev"
        Option "EmulateWheel" "true"
        Option "EmulateWheelButton" "2"
        Option "Emulate3Buttons" "false"
        Option "XAxisMapping" "6 7"
        Option "YAxisMapping" "4 5"
    EndSection

  • Build an SMS to email gateway in under ten minutes

    If you use an SMS gateway, such as Clickatell, to send SMS from your website or computer, you might want to set up your own simple return path for people to reply to those SMS and have them emailed to you.

    With an always-on Ubuntu 10.04 machine, an old mobile phone and a cheap pre-paid SIM, you can have this setup in under 10 minutes.

    First, install the required software; the Gammu SMS daemon for getting the SMS off the mobile and Mutt for sending our emails.

    $ sudo apt-get install gammu-smsd mutt


    Put this little shell script somewhere like /var/spool/gammu/mail_wrapper.sh, customising the email addresses. It will be used to send the email when an SMS is received:

    #!/bin/bash
    export EMAIL="SMS Daemon <sms@example.com>"
    echo | mutt you@example.com -i "/var/spool/gammu/inbox/$1" -a "/var/spool/gammu/inbox/$1" -s "SMS Received"


    Attach your phone to your computer (mine was USB) and select “Phone mode” or similar on the mobile (as opposed to mass storage mode or photo mode, for example). Follow your system log to see what port your mobile shows up on, you should see output similar to this:

    $ tail -f /var/log/syslog
    Sep  6 09:00:22 smsgateway kernel: [105224.650743] usb 1-4: new high speed USB device using ehci_hcd and address 6
    Sep  6 09:00:22 smsgateway kernel: [105224.991701] usb 1-4: configuration #3 chosen from 1 choice
    Sep  6 09:00:22 smsgateway kernel: [105224.995894] cdc_acm 1-4:3.1: ttyACM0: USB ACM device
    Sep  6 09:00:22 smsgateway kernel: [105224.997427] cdc_acm 1-4:3.3: ttyACM1: USB ACM device
    Sep  6 09:00:22 smsgateway kernel: [105225.000013] cdc_wdm 1-4:3.7: cdc-wdm0: USB WDM device


    The logs above show my mobile exposing two USB modem ports, /dev/ttyACM0 and /dev/ttyACM1. Trial and error lead me to discover that /dev/ttyACM1 was the port I was looking for.

    Now configure this port in your /etc/gammu-smsdrc file with the line port = /dev/ttyACM1 and add the line runonreceive = /var/spool/gammu/mail_wrapper.sh so that the script we created earlier is executed when an SMS is received. The complete /etc/gammu-smsdrc file should look similar to this:

    # Configuration file for Gammu SMS Daemon

    # Gammu library configuration, see gammurc(5)
    [gammu]
    # Please configure this!
    port = /dev/ttyACM1
    connection = at
    # Debugging
    #logformat = textall

    # SMSD configuration, see gammu-smsdrc(5)
    [smsd]
    service = files
    logfile = syslog
    # Increase for debugging information
    debuglevel = 0

    # Paths where messages are stored
    inboxpath = /var/spool/gammu/inbox/
    outboxpath = /var/spool/gammu/outbox/
    sentsmspath = /var/spool/gammu/sent/
    errorsmspath = /var/spool/gammu/error/

    runonreceive = /var/spool/gammu/mail_wrapper.sh


    Now start Gammu’s smsd and, with the configuration above, Gammu will log activity to syslog so you can send an SMS and see the fruits of your labour:

    $ sudo service gammu-smsd start
     * Starting Gammu SMS Daemon gammu-smsd                                                                                                                                   [ OK ]
    $ tail -f /var/log/syslog
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: Configuring Gammu SMSD...
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: SHM token: 0xffffffff
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: Warning: No PIN code in /etc/gammu-smsdrc file
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: commtimeout=30, sendtimeout=30, receivefrequency=0, resetfrequency=0
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: checks: security=1, battery=1, signal=1
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: deliveryreport = no
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: phoneid =
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: Inbox is "/var/spool/gammu/inbox/" with format "standard"
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: Outbox is "/var/spool/gammu/outbox/" with transmission format "7bit"
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: Sent SMS moved to "/var/spool/gammu/sent/"
    Sep  6 09:09:00 smsgateway gammu-smsd[11229]: SMS with errors moved to "/var/spool/gammu/error/"
    Sep  6 09:09:00 smsgateway gammu-smsd[11232]: Using FILES service
    Sep  6 09:09:00 smsgateway gammu-smsd[11232]: Starting phone communication...
    Sep  6 09:09:13 smsgateway gammu-smsd[11232]: Received message from +61412345678
    Sep  6 09:09:13 smsgateway gammu-smsd[11232]: Received IN20100902_165719_00_+61412345678_00.txt
    Sep  6 09:09:13 smsgateway gammu-smsd[11258]: Starting run on receive: "/var/spool/gammu/mail_wrapper.sh" IN20100902_165719_00_+61412345678_00.txt
    Sep  6 09:09:13 smsgateway gammu-smsd[11232]: Process finished successfully


    If you run into any problems or need some help, please leave a comment below.

    Note that there are more sophisticated ways of setting this up and many gateway providers have a much easier method to achieve the same result without you having to set up anything.

  • GNU gettext find and replace

    GNU gettext is used by many open source projects for translation support.

    If you need to just do a find and replace in gettext source files, try this out to do a whole directory at once:

    for i in *.po; do
      echo "Processing $i"
      msgfilter --no-wrap sed -e "s/OLD_TEXT/NEW_TEXT/g" < $i > /tmp/gettext
      mv /tmp/gettext $i
    done


    I couldn’t find a way to do the edit in place (a la sed -i), if you know of a way please let me know in the comments.
